Highway Guardrail Barrier
Highway Galvanzied Guardrail
Highway Safety Galvanzied Defensas Metalicas Metal W Beam Guardrail

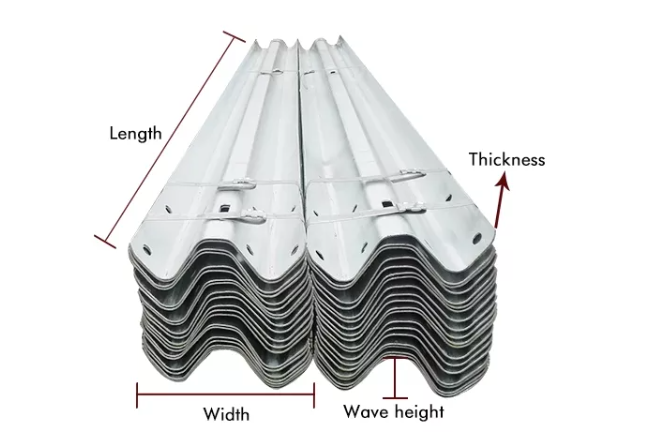

| Normal size of beam | L:3200/3810/4000/4300/4320 | |||
| W:306/310/312/380 | ||||
| Height : 80/82/83/85 | ||||
| Thickness :2.75/3/4mm or customized. | ||||
| Available in different sizes. | ||||
| Size of post | As standard or customized | |||

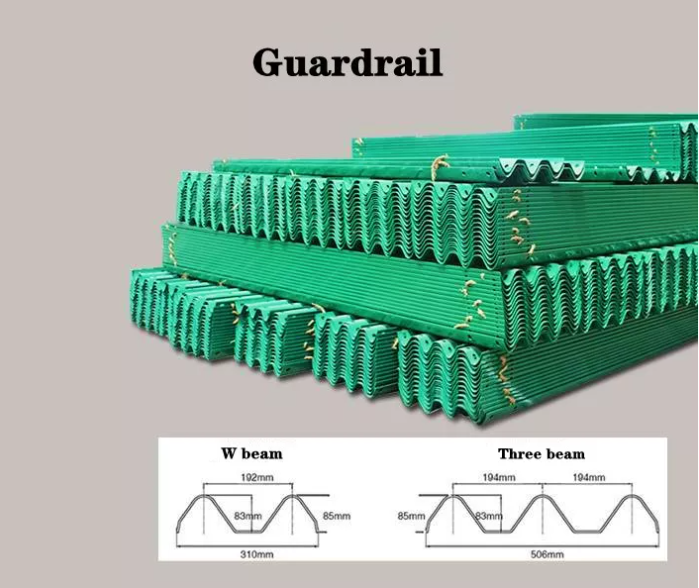

| Guardrail beam style | W beam,thrie beam | |||
| Surface treatment | Hot dipped galvanized or plastic sprayed coating | |||
| Guardrail standard | JT/T2811995(corrugated sheet steel beams for expressway/highway guardrail-China) | |||
| AASHTO M180(corrugated sheet steel beams for expressway/highway guardrail-USA) | ||||
| RAL RG620(corrugated sheet steel beams for expressway/highway guardrail-German) | ||||
| AS NZS 3845-1999(corrugated sheet steel beams for expressway/highway guardrail-AU/NZS) | ||||
| Steel grade | Grade Q235B (equivalent to S235JR,according to DIN EN 10025 and GR. according to ASTM A283M) | |||
| Q345(S355JR/ASTM A529M 1994) | ||||
| ZInc coating thickness | 550 (80µ) / 610 (85µ) / 1100 (160µ) / 1200 g/m2 (170µ) or customized | |||
| Guardrail feature | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, | |||
| environmental protection, etc. | ||||

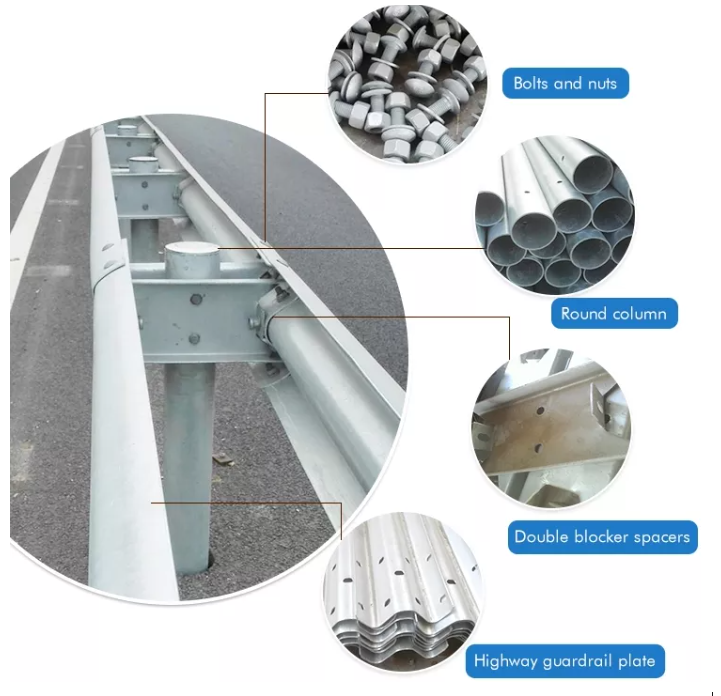

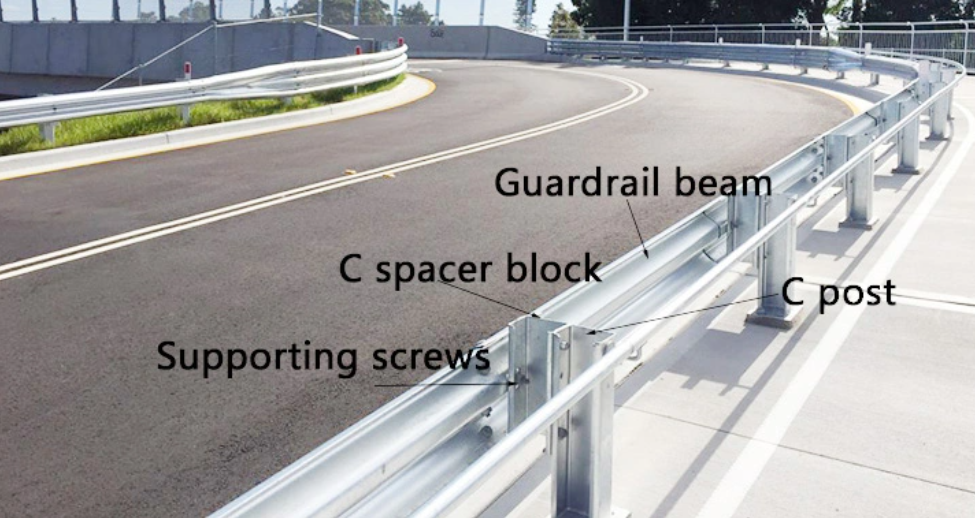

| Guardrail relevant parts | Post, Spacer (C, U,H and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors | |||
| MOQ | 1*20 ft container(For W beam guardrail, it would be 1.3-1.5 km) | |||
| Price item | EXW,FOB,CIF,CFR,etc | |||
| Payment term | T/T,L/C,Trade Assurance | |||
| Delivery | 10-15 working days | |||
